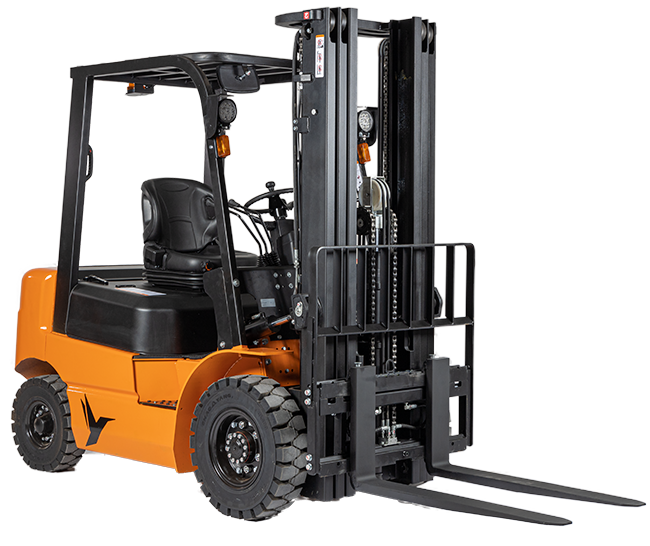

Lithium-Ion Powered Forklift

EFLC25

The ePicker EFLC25 Forklift with a load capacity of 5,000 lbs, offer exceptionally fast charging times that will cover 7-8 hours of run time. The EFLC25 was designed to be a purpose-built lithium forklift and features a fully integrated power source that will run virtually non-stop for most applications.

These units are highly maneuverable, operating comfortably in a wide range of applications and conditions. Dual AC drive motor delivers smooth torque and speed curves matched to vehicle needs in real-time for peak efficiency and performance.

Regenerative neutral braking extends duty-cycle. This vehicle's wet disc hydraulic brakes and foot actuated parking brake ensure effective stopping power during operation and when on rated grades.

On-board programmable LCD display allows for troubleshooting and system adjustments without need of tools. Units come pre-wired for optional telematics system that includes cloud based maintenance monitoring, GPS tracking and related data services.


Operator Compartment
Operator compartment is exceptionally spacious due to purpose-built design for an integrated lithium battery. Ergonomic controls are provided for lift, lower, tilt and sideshift, which are within easy reach of the operator. Visibility is excellent through the wide view mast. Power steering with assist knob, adjustable steering column & adjustable suspension seat ensures comfortable working position and reduced fatigue during operation. Large mirror and overhead guard mounted handrail aids operator when driving the in the reverse direction of travel. LCD programmable display communicates travel speed, battery discharge information, hour meter, and fault codes.

Hydraulics
Three function for lift, tilt and sideshift as standard. Optional 4th valve, with control and hosing is available to support two function attachments.

Electrical
80v AC controller technology delivers high efficiency and performance while significantly reducing maintenance cost and extending vehicle service life. Battery management system monitors lithium battery performance during operation and charging to help extend battery service life far longer than traditional lead acid industrial batteries.

Drive Unit & Brakes
Dual AC driver motors deliver smooth torque and speed curves matched to vehicle needs in real time for peak efficiency and performance. Regenerative neutral braking extends duty-cycle. Vehicle's wet disc hydraulic brakes and foot actuated parking brake ensure effective stopping power during operation and when on rated grades.

Frame & Mast

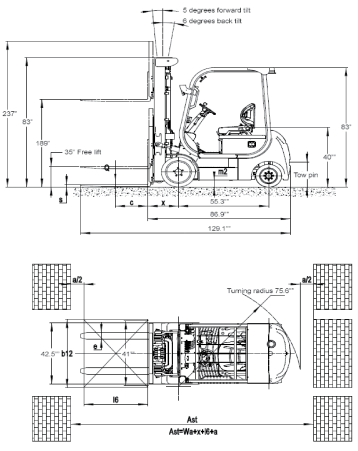

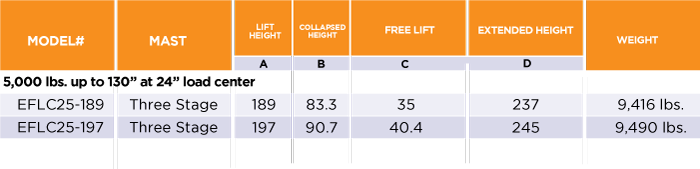

Heavy duty steel chassis features long wheel-base, wide tires and low center of gravity for stable operation. Wide view mast includes an integral side-shift and load back rest (LBR). High seating position gives the operator an excellent view for efficient load handling at ground level and elevation. Integral sideshift as standard equipment. Triple stage wide view masts deliver maximum lift heights of up to 197".

Serviceability
On-board programmable LCD display allows for troubleshooting and system adjustments without need of tools. Units come pre-wired for optional telematics system that includes cloud based maintenance monitoring, GPS tracking and related data services.
